Vestil Steel DC Powered Jib Crane 4-7 Ft. Boom 2,000 Lb. Capacity Blue WTJ-20-4-DC
SKU WTJ-20-4-DC
Original price
$3,667.00
-
Original price
$3,667.00
Original price
$3,667.00
$3,667.00
-
$3,667.00
Current price
$3,667.00
In stock and ready to ship
All orders are shipped within 1-2 business days. Product ETA 5-7 business days.

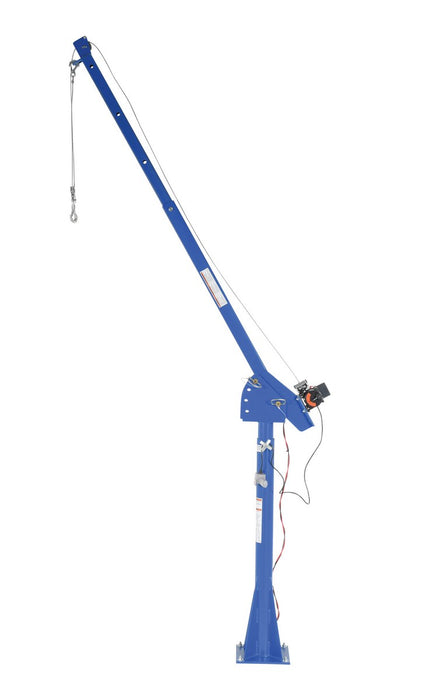

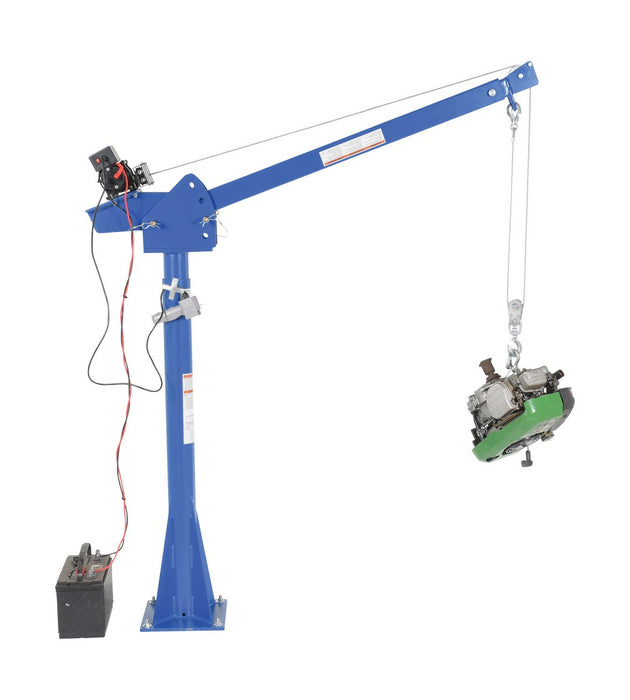

A power lift Jib crane is designed for material handling applications on docks, in warehouses or in truck beds. This intermittent unit uses crane feature rotation hand brakes that offer unlimited positioning. The mast mounts permanently. Boom adjusts in one (1) foot increments and can be positioned at four (4) elevations. Folds for storage. Unit is designed for vertical lifting only. Do not use unit for lifting personnel or overhead lifting.
- Powered cable winch makes lifting and maneuvering easy
- Boom telescopes in and out for greater reach and versatility
- 360 Degrees swivel design allows for maximum accessibility
- Pre-drilled base plate makes mounting quick and easy
| Uniform Capacity (lb.): 2,000 | Boom Reach (in.): 51-1/4 to 87-1/4 | Boom Height (in.): 59-1/2 to 106-1/2 |
| Rotation Degree: 360 | Boom Adjustment Increments (in.): 12 | Cable Length (ft.): 46 |
| Cable Diameter (in.): 3/16 | DC (volts): 12 | Horsepower (HP): 1 |
| Mounting Plate Length (in.): 12 | Mounting Plate Width (in.): 12 | Capacity at 59-1/2" Fully Retracted (lbs.): 1,100 |
| Capacity at 59-1/2" Second Position (lbs.): 800 | Capacity at 59-1/2" Third Position (lbs.): 600 | Capacity at 59-1/2" Fully Extended (lbs.): 250 |
| Capacity at 78-1/4" Fully Retracted (lbs.): 1,500 | Capacity at 78-1/4" Second Position (lbs.): 1,200 | Capacity at 78-1/4" Third Position (lbs.): 1,000 |
| Capacity at 78-1/4" Fully Extended (lbs.): 600 | Capacity at 94-1/2" Fully Retracted (lbs.): 1,850 |
